EN 45545-2:2020 New standard for fire, smoke and toxic substances in EU railway vehicles
EN 45545-2:2020 was developed by Technical Committee CEN/TC 256 "Railway Applications". This European standard should obtain the status of a national standard by publishing the corresponding text or endorsement no later than February 2021, and conflicting national standards should be withdrawn no later than February 2021. The EN 45545-2:2020 standard is planned to replace the EN 45545-2:2013+A1:2015 standard. The latest EU standard, EN 45545, has officially replaced various European standards such as the British standard BS6853, German standard DIN 5510-2, and French standard NF F16-101, becoming the universal mandatory fire protection standard for rail vehicle materials in European countries.
EN 45545-2 is developed based on the International Union of Railways (UIC) and existing fire safety regulations for railway vehicles in different European countries. EN 45545-2 is the core part of the most commonly used material fire testing in the new EN 45545 standard. Here, we mainly analyze this part of the EN 45545-2 test.
EN45545-2:2020 is divided into 28 categories, R1-R28, based on the ultimate use of the material; According to the risk level of vehicle operation, there are three fire risk levels: HL1, HL2, and HL3 (with HL3 being the highest level requirement).
The old standard EN 45545-2:2013+A1:2015 divides materials into 26 categories, R1-R26, based on their ultimate use.
The latest standard EN 45545-2:2020 divides materials into 28 categories, R1-R28, based on their ultimate use. The R1-R26 categories are basically consistent with the old standards, with the addition of R27 light diffusers and display screen covers, and R28 floor composite materials (including floor substrates and floor coverings).

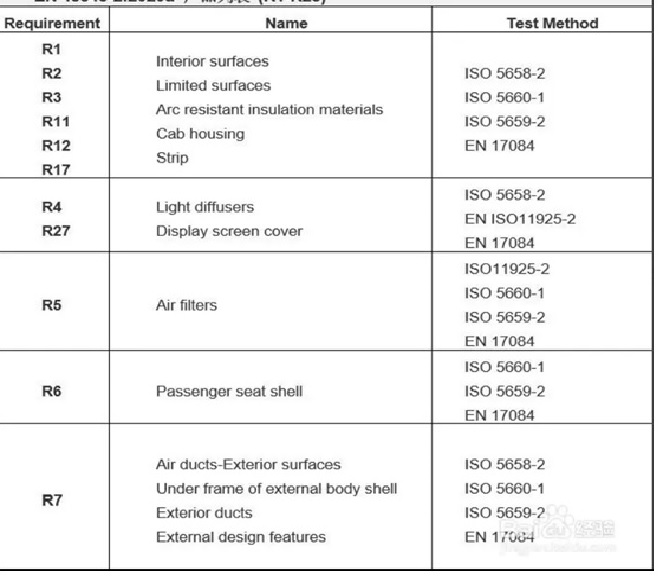

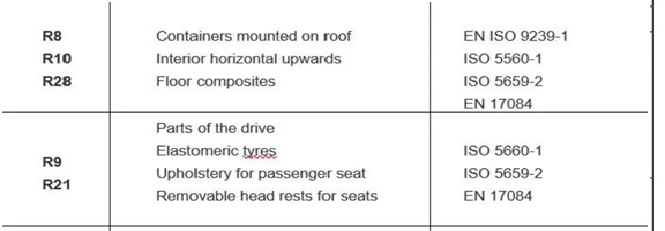

Requirements of listed products
New standards added
EN 16989 Railway Applications - Fire Protection of Railway Vehicles - Fire Performance Test for Complete Seats
EN 17084 Railway Applications - Fire Protection of Railway Vehicles - Toxicity Testing of Materials and Components
Main testing standards
EN ISO 5658-2: Flame Spread Performance Testing
EN ISO 5660-1: Test method for heat release rate of products
EN ISO 5659-2: Smoke and Smoke Density Testing of Products after Combustion
EN 17084: Toxicity testing
EN ISO 9239-1: Fire Performance Testing of Ground Materials
EN ISO 4589: Oxygen Index Test
EN ISO 1182: Non flammability testing
EN ISO 1716: Combustion Heat Value Test
EN ISO 5659-2: Smoke and Smoke Density Testing of Products after Combustion
EN 17084: Toxicity testing
EN 50266: Vertical flame combustion of cables
EN 61034-2: Smoke concentration testing for wires and cables
EN 50382: High temperature power cables for railway locomotives and rolling stock have special fire resistance properties - Part 1: General requirements
EN 60332-1-2: Single vertical flame burning of wires and cables
EN IEC 60332-3-24: Vertical burning test for multiple bundled wires and cables
EN 61034-2: Smoke concentration testing for wires and cables
EN 50382: High temperature power cables for railway locomotives and rolling stock have special fire resistance properties - Part 1: General requirements
EN 50268-2: Test for Smoke Density of Wires and Cables
NF X 70-100: Toxicity Testing
