Cell Test Pressure Vessel Device
According to
ANSI/CAN/UL 9540A: 2019
The cell test pressure vessel device is mainly used to meet the requirements of UL 9540A for cell thermal runaway test. It can meet the requirements of commercially available battery placement, internal cavity vacuumization, nitrogen filling function, pressure, temperature, oxygen concentration and other parameters measurement. In addition, it reserves a film heating interface and overshot circuit interface.

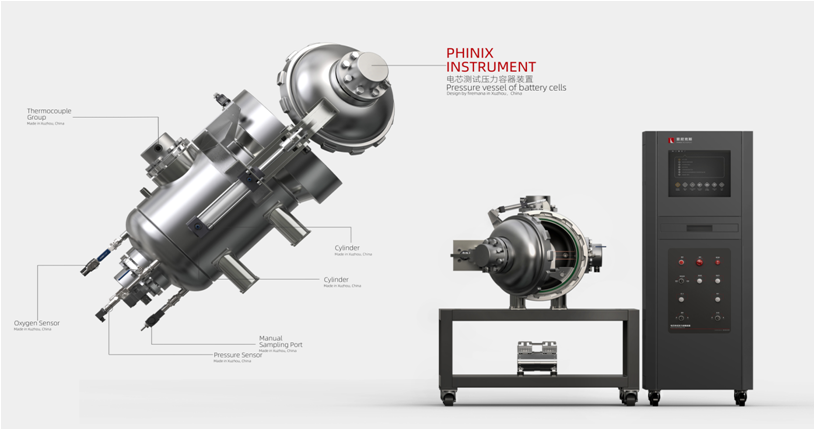

The cell test pressure vessel device consists of
· The sealed chamber is made of 304 stainless steel, with an internal diameter of 480mm and a length of 500mm. The test space volume is about 90L.
· The maximum pressure of the cabin is 10Mpa, the constant pressure is not less than 3MPa, the cabin is equipped with engineering pressure 6.4mpa safety valve.
· The cabin reserved a number of flanged connecting plate, the connecting plate is used for temperature, voltage, heating, overstroke and other lines connection. And reserved - channel nitrogen filling interface for connecting external nitrogen to achieve the oxygen concentration of the cabin. 1% environment configuration.
· The battery mounting port is opened and closed by movable door, and is equipped with locking screws to ensure the tightness of the cabin body. The movable metal sample bracket is equipped internally, and the structure is imported and placed smoothly.
· Equipped with Thomas sampling pump, the exhaust speed can be manually adjusted to achieve -90kpa vacuuming capacity inside the cabin.
· Equipped with pressure sensor, pressure monitoring range -0.1mpa -- 0.5mpa (can be customized according to actual use) .
· The device reserves 13 temperature collection channels, and the temperature display precision is 0.1°C.
· The device reserves two voltage acquisition signals to test the real-time voltage variation of the battery cell.
· Manual ball valves and solenoid valves are reserved for all pipelines and sensor interfaces to protect sensors and block gas leakage in the cabin.
· A manual sampling interface is reserved and equipped with a mode filter with a filter precision of 0.μm.
· The independent design standard electrical control cabinet, built-in 19 inch touch screen, metal frame structure, surface using electrostatic spraying, high-temperature baking and other processes, dirty, wear-resistant, oil resistant, easy to clean, beautiful and generous.
· Using Siemens programmable control system (PLC) and analog module, equipped with Labview host computer software, it can realize real-time monitoring, display and data storage of temperature, cavity pressure, oxygen concentration and other data as well as test process, and can make reports and report output of test process data. It is stored in Excel, Word, PDF and other file formats for easy viewing and editing.
If you have a particular need for fire test instruments or are just in the planning stage, let's contact us.
