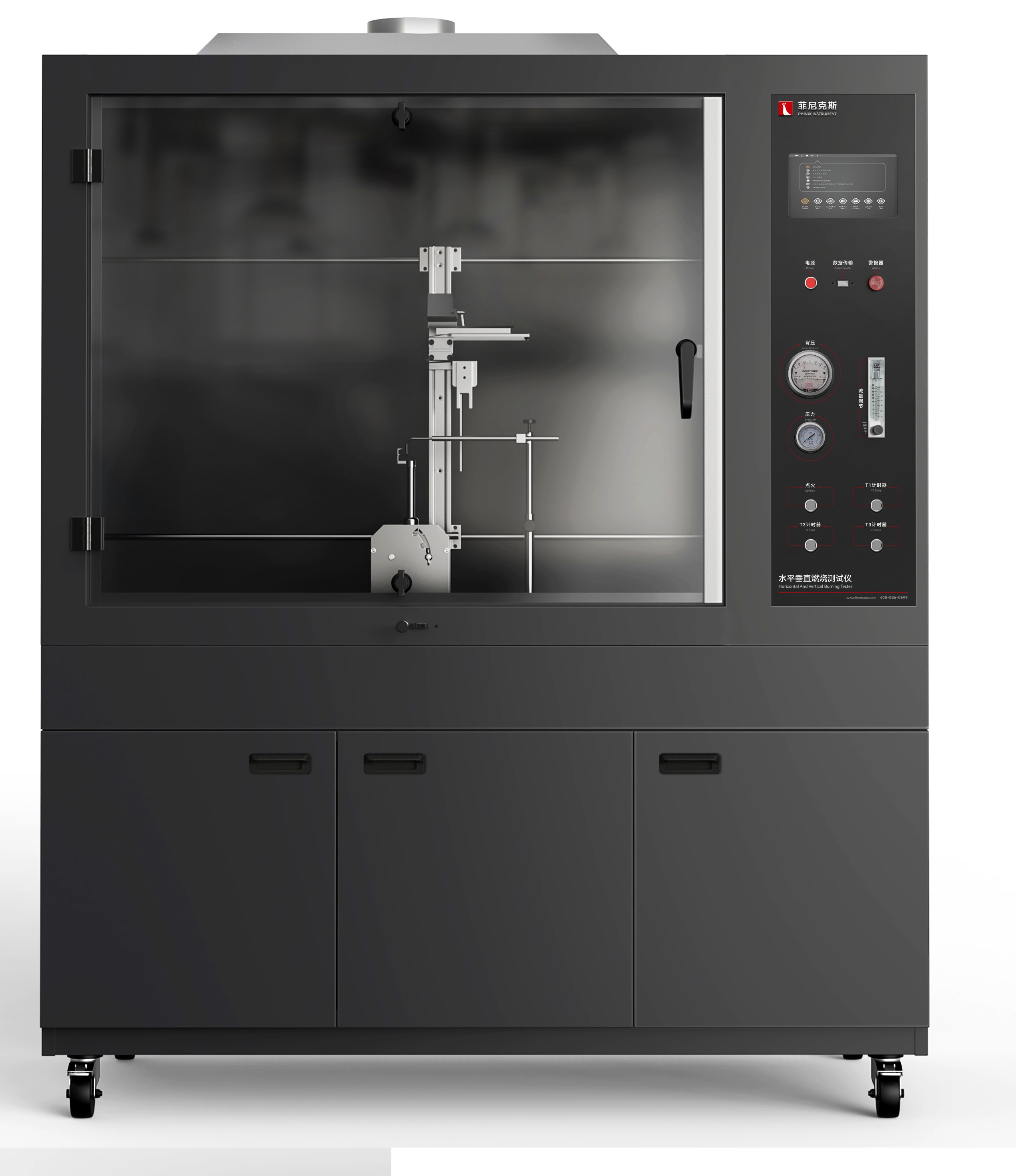

UL 94 Test Chamber
According to
UL94 HB, IEC 60695-11-10, IEC 60707, ISO 1210, GB/T 2408;
50W vertical combustion test: UL94 V0, V1, V2, IEC 60695-11-10, ISO 1210
500W vertical combustion test: UL94 5VA, 5VB, IEC 60695-11-20, ISO 9770
Thin film material vertical combustion test (optional) : VTM-0, VTM-1, VTM-2, ISO 9773
UL 94 Test Chamber is the flame retardant testing equipment developed by our company according to the standard. It can detect the flammability, combustion rate, flame spread, combustion intensity and flame retardant performance of the product. High degree of automation, accurate test data.
UL 94 Test Chamber consists of
· Steel structure chamber, test chamber volume more than 0.75 cubic meters, to provide adequate clean air for the test.
· Large observation window, inner wall coating is dark, illumination within 20Lux, easy to observe the combustion state of the sample.
· Smoke exhaust device is installed on the top, which can automatically open to discharge test exhaust gas after the end of the test.
· Introduction of industrial design concept of structure, appearance and interface design, easy to operate, friendly interface, ergonomic and operating habits, beautiful appearance.

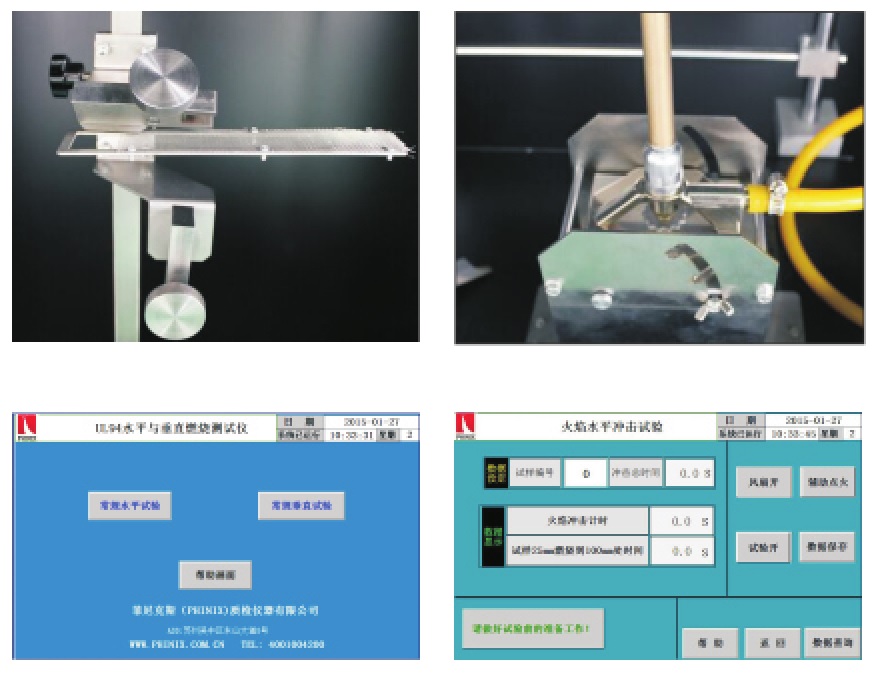

· The sample fixture can achieve smooth movement and precise positioning in horizontal and vertical directions by sliding rail structure.
· High pressure pulse automatic ignition, ignition stability and reliability, high security
· Equipped with imported precise rotor flowmeter to control gas flow, equipped with imported differential pressure measurement burner back pressure.
· Equipped with brand pressure gauge and pressure regulating valve to adjust gas pressure, equipped with solenoid valve to control gas on and off, to ensure the safety of equipment.·
If you have a particular need for fire test instruments or are just in the planning stage, let's contact us.
