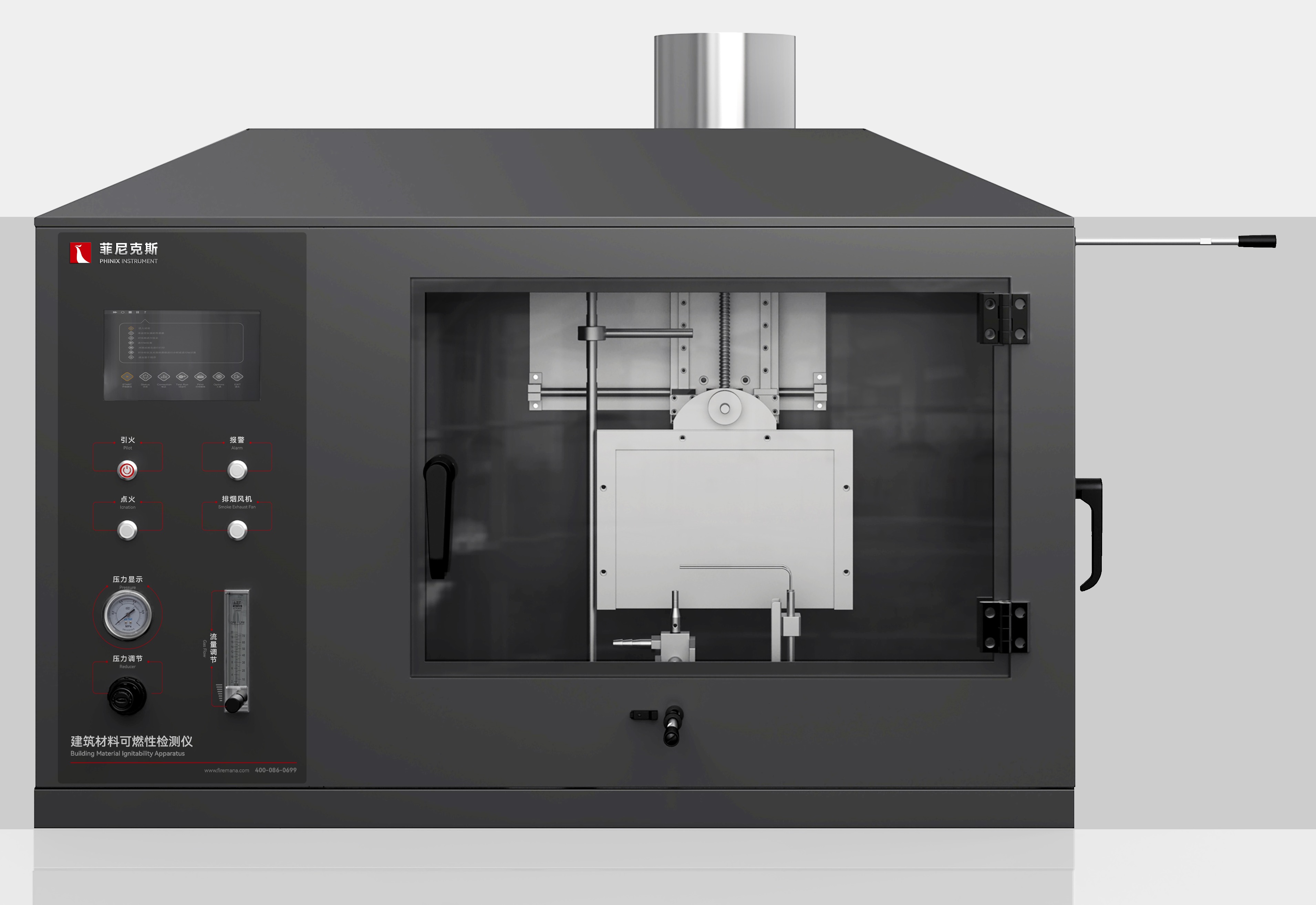

Single Flame Source Test (Ignitability Apparatus)
According to
ISO 11925-2, DIN 54837, EN 45545-2, DIN 4102-1
The Single Flame Source Test instrument uses Kleinbrenner principle in Germany, under the condition of no external radiation, with a small flame directly impact vertically placed samples to determine the flammability of building products. It conforms to EN 13501-1, ISO11925 "Flammability test Method for Building Materials" and other standards, and is applicable to B, C, D, E, Bfl, Cfl, Dfl and Efl in EN 13501-1 classification of combustion performance of building materials.
Single Flame Source Test consists of
· Introduction of industrial design concept of structure, appearance and interface design, integrated panel structure, easy to operate, friendly interface, ergonomic and operating habits, beautiful appearance.
· High pressure pulse automatic ignition, ignition stability and reliability, high security.
· The burner is made of brass, the diameter of gas outlet is 0.17±0.03mm, which can produce 20mm stable flame.

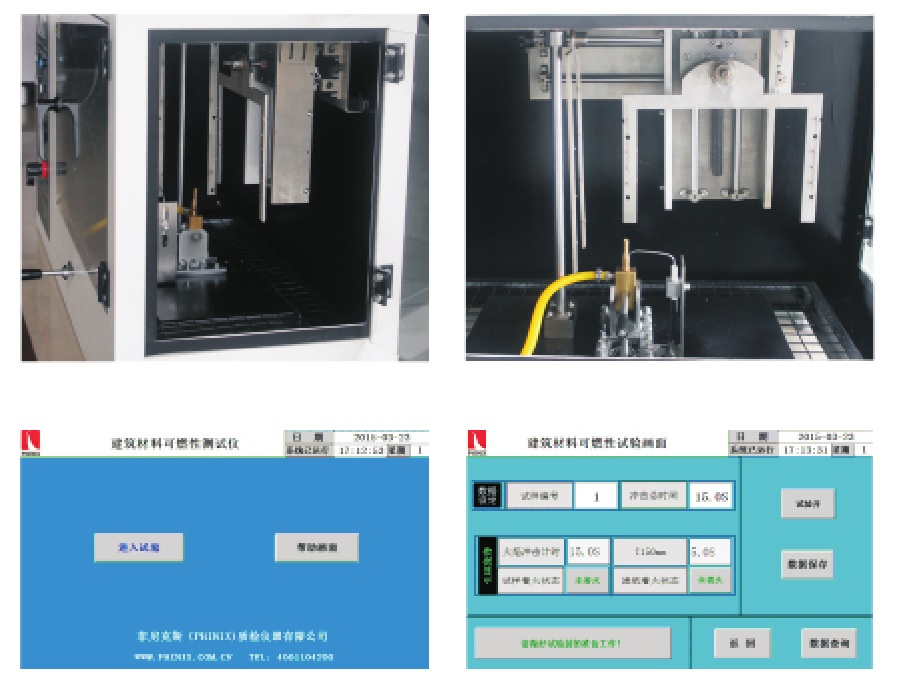

· Programmable logic controller (PLC)+ touch screen control, can realize automatic control/detection/calculation/data storage
· Test time and fire time can be set automatically with automatic timing functionLinear combustion rate (V) calculated by PLC, data displayed and saved by touch screen.
If you have a particular need for fire test instruments or are just in the planning stage, let's contact us.·
