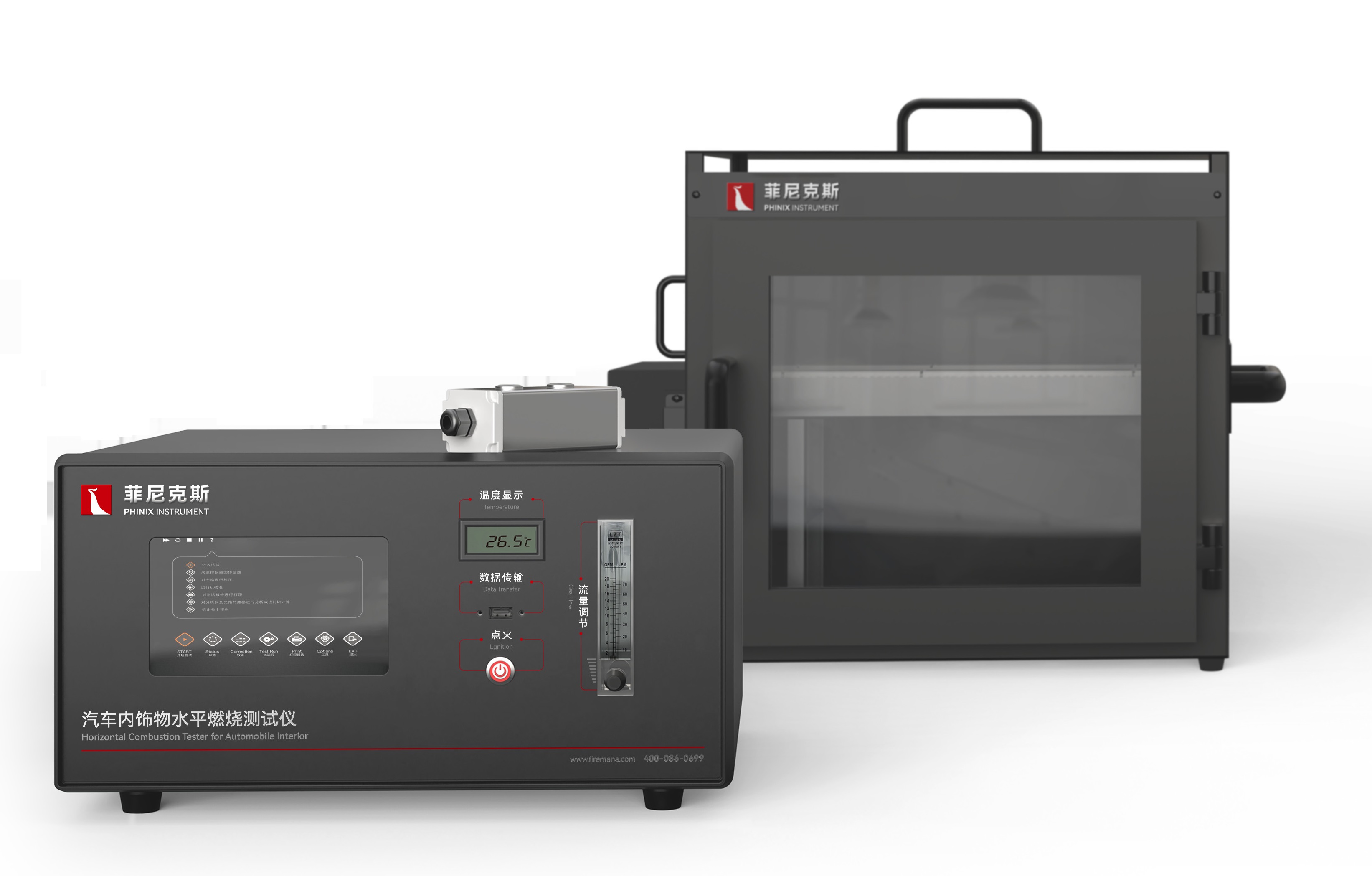

FMVSS 302 Horizontal Combustion Tester For Automotive Interior

According to

FMVSS 302, ISO 3795, ASTM D5132

According to FMVSS 302 (ISO 3795, ASTM D5132), the FMVSS 302 Horizontal Combustion Tester, is designed to evaluate the flame retardancy of internal materials used in the passenger compartment of motor vehicles.

FMVSS 302 Horizontal Combustion Tester consists of

·  Steel structure chamber, combustion chamber three-door structure, the top cover can be opened to facilitate the cleaning of the box after the test.

·  The front panel is installed with high temperature toughened glass observation window, which is easy to observe the test state and can be opened to facilitate glass cleaning.

·  A temperature controller is installed in the middle of the rear of the chamber body. The temperature of the chamber body is monitored in real time by the instrument. The measuring range is 0-200℃.

·  The burner is installed on the side door and positioned at the firing position when closing the door. The flame locator is installed on the side door to confirm the flame height.

·  High pressure pulse automatic ignition, ignition stability and reliability, high security.

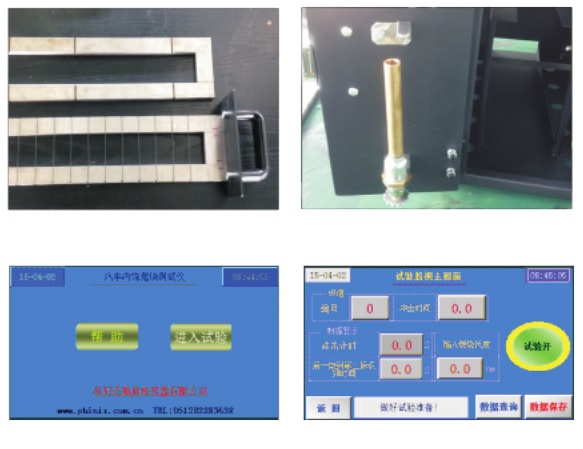

·  Stainless steel sample holder with heat-resistant wire (for flexible fabric testing) and splint, with 38mm,138mm,254mm marking line engraved on the splint for easy observation.

·  Equipped with imported precise rotor flowmeter to control gas and air flow.

·  The door hinge on the left side is fixed, and the sealing of the door is determined by magnetic touch.

·  Separate control chamber and combustion chamber, reduce the impact of combustion heat on electrical parts, improve the service life of equipment.

·  Pure copper burner, can provide the standard requirements of 38mm stable fire source.

·  Programmable logic controller (PLC)+ touch screen control, can realize automatic control/detection/calculation/data storage.

·  Equipped with hand-held button box for timing operation,PLC automatic timing, timing accuracy of 0.1sLinear combustion rate (V) calculated by PLC, data displayed and saved by touch screen.
