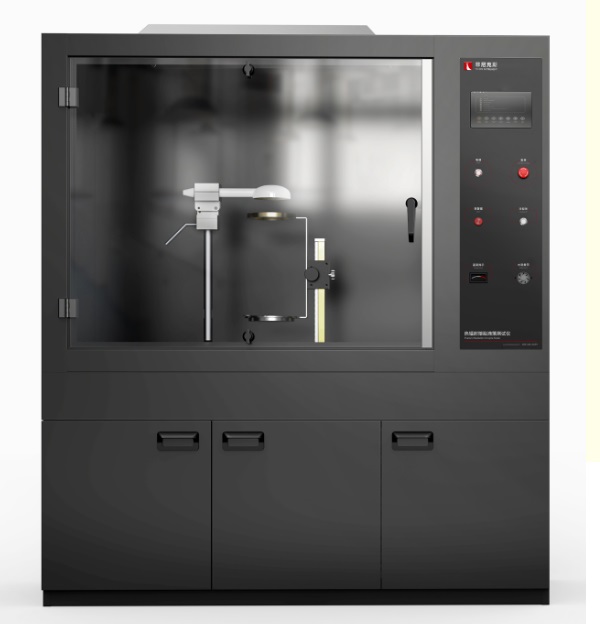

Dripping Test Apparatus NF P92-505
According to
NF P92-505: Melting drop test for fire resistance of buildings-materials;
ECE R118 Annex 7: Standard for Combustion Tests of automotive materials
Dripping Test Apparatus consists of
· Steel structure chamber, test chamber volume more than 0.75 cubic meters
· Large observation window, the inner wall of the chamber is coated with black, and the illumination is within 20Lux, which is easy to observe the test condition of the sample.
· Smoke exhaust device is installed on the top, which can automatically open to discharge test exhaust gas after the end of the test.
· Equipped with water-cooled heat flow meter to calibrate radiation heat source, without external cooling water source, the maximum range is 100W/cm²(optional).
· The heat radiation device can be adjusted and fixed to the test position and calibration position.
· The sample tray is made of stainless steel, located in the positive direction of the heat radiation cover, and can be adjusted up and down by rack transmission device and locked and fixed.
· Introduction of industrial design concept of structure, appearance and interface design, integrated panel structure, easy to operate, friendly interface, ergonomic and operating habits, beautiful appearance.
· Epiradiator heat radiation device, can provide 30KW/m² heat radiation flux.
· The power controller controls the radiation output and adjusts the radiation flux of the thermal radiation device.
· Stainless steel absorbent cotton fixed plate is installed below the sample tray to collect and test drips and confirm whether the supporting cotton is ignited.
· Programmable logic controller (PLC) touch screen, realize control/detection/calculation/data display.
· Program Sets the calibration program to calibrate the radiation mask.
